Fan Pumps

Voith Model 635 DK 70/90 Year 1989. Flow: 35000 GPM at 80 feet head. 1000 HP / 880 RPM. Discharge Diameter: 70cm (27.56"). Suction Diameter: 90cm (35.43").

Voith Model 635 DK 70/90 Year 1989. Flow: 32921 GPM at 100 Feet Head. 1200 HP / 880 RPM. Discharge Diameter: 70cm (27.56"). Suction Diameter: 90cm (35.43")

Ahlstrom ZY 100 Rotating Assembly Horizontal Axial Split Case Pump Impeller. Material: 316SS.

Ahlstrom Model ZUU 50 Axial Split Case Pump; Discharge Flange: 20” Diameter; Suction Flange: 24” Diameter; Total Dynamic Head: 110 ft (33.5m); Flow: 15530 GPM (980 l/sec); RPM: 960. Material: 316SS Case and Rotating Assembly.

Ahlstrom ZZZ 80 Rotating Assembly Horizontal Axial Split Case Pump Impeller. Material: 316SS.

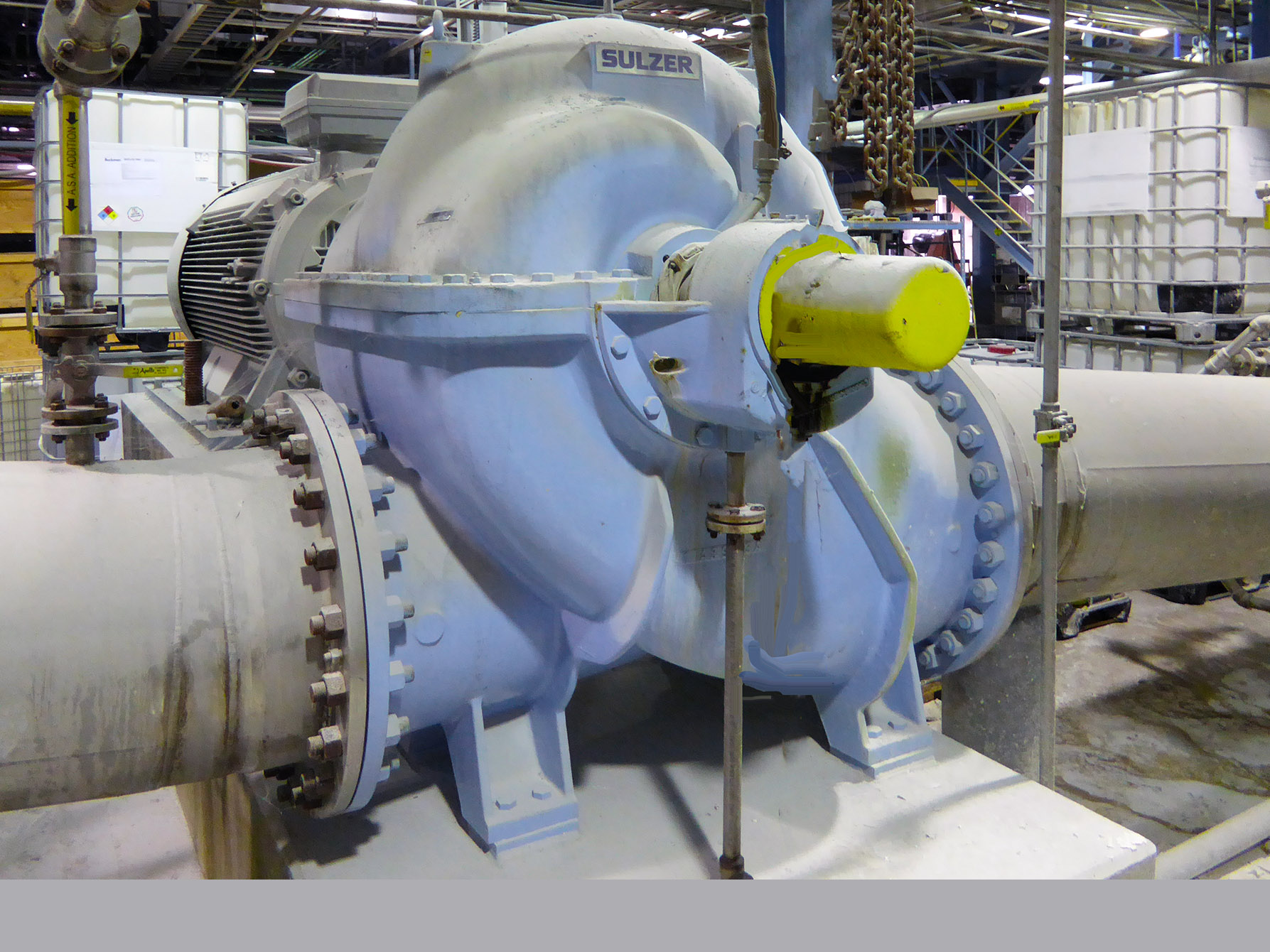

Sulzer Pump DK 70/90 Rotating Assembly Low Pulse Nine-Vane Design New Shaft Sleeves. Storeroom Condition.

Ahlstrom Z-X60U-2 Split Case Double Suction Fan Pump. 15000 GPM (76 L/sec); 90 Ft. Head (27.4 M); Rated at 890 RPM. Construction 316 SS Casing and Impeller Assembly.

Ahlstrom / Sulzer ZXX-70 Horizontal Split Case Pump. 316 Stainless Steel Construction. Rated for 140.1 Ft. Head at a flow of 37094 GPM. Inlet Diameter 30”; Outlet Diameter 30”.

Ahlstrom / Sulzer ZXX-70 Horizontal Split Case Pump. 316 Stainless Steel Construction. Rated for 45.3 Ft. Head at a flow of 24902 GPM. Size: Inlet Diameter: 30”; Outlet Diameter: 30”. Year 1987.
