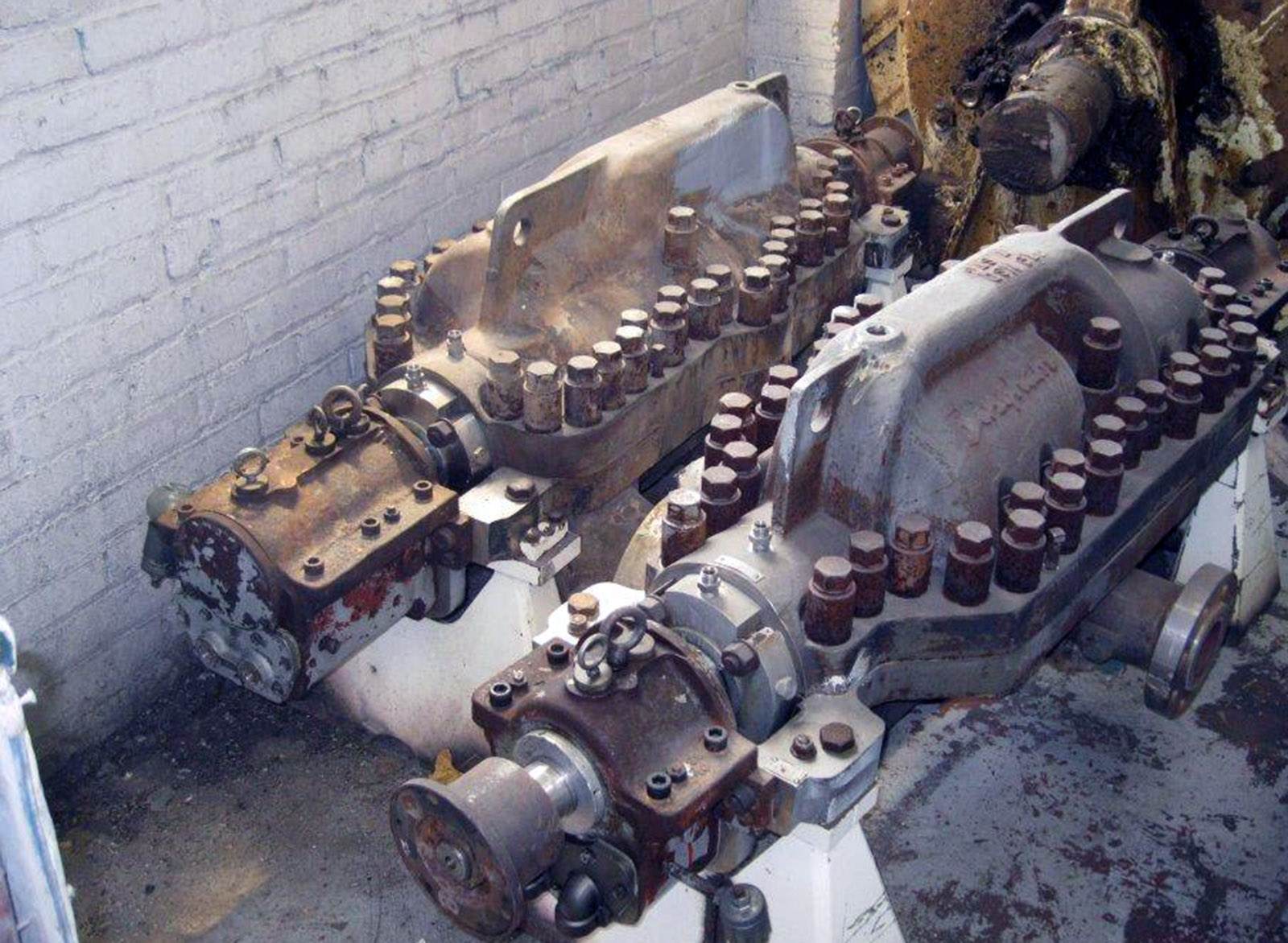

Boiler Feedwater Pump

Bingham Model 10x8HSM Size 8x10-13 317 SS; 140 Ft Head 2500 GPM @ 1750 Rpm Impeller diameter 11 ¼” Mechanical Seal; 300 LB Flanges Info & Curve chart on File Rebuilt. Was previously used for pumping acid. The pump is rebuilt and in ready to install condition.

Ingersoll Rand Other Ingersol Rand Pumps Model HC Size: 2x1.5-9. Material of Construction is: Cast Iron . Impeller: : 9.44" Trim

Goulds model 3316 size 4x6-11 cast iron bronze fitted.

Goulds model 3316 size 4x6-11 full 316 stainless steel.

Bingham 5-Stage Model# MSD-D Multistage Pump Size 4x8-10.5 Head 2000 Ft. GPM 1400 RPM 3560.

Bingham 5-Stage Model# MSD-D Multistage Pump Size 4x8-10.5 Head 2000 Ft. GPM 1400 RPM 3560.

Bingham Multistage Pump Model MSD Size 3x6-9C Head 2085 Ft. GPM 585 RPM 3560 Materials: CA6NM. Cast Chrome/Steel Casing with same internals (Chrome/Nickel Alloy) MAWP 1100 PSIG; 7-Stage Year of Mfg. 1990. Thrust Bearing: Duplex 7310; Radial Bearing: Sleeve.

Bingham Multistage Pump Model MSD Size 3x6-9C Head 208.5 Ft. GPM 585 RPM 3560 Cast Duplex Casing MAWP 1100 PSIG

Goulds Model 3316; Size 8x10-17; Pump Construction: CI Casing and 316SS Impeller; Impeller Diameter: 19”/18”; Flow Characteristics: 1500 GPM (94.6 L/sec); 475’ Head (144.5 M) at 1750 RPM.

Ingersoll Dresser Size: 4x11DAD-4; GPM: 1000; Head: 2100; RPM: 3560; SP. GR: .92; Hydro PSIG: 1650; BRG NO: Sleeve/KTB; Rebuilt on 11/1/96 By Ingersoll-Dresser Pump Company.

Ingersoll Dresser Size: 3x10DA4; Flow GPM: 500; Head Foot: 1320; Hydro PSIG: 1050; RPM: 3560; SP GR: 93; Min Flow GPM: 179; MAWP PSIG: 700 at 240 F; Bearing # SLEEVE / SKF 7310; Pump is in very good condition only used for 1 year.

Ingersoll Rand Size 4HMTA-6 Boiler Feed Water Pump; Cameron Division; GPM: 586; Head FT: 2024; RPM: 3560; SP. GR: 0.95; Hydro PSIG: 1200; Rebuilt by Flowserve: 06/11/03; Pump Casting Number: 36HMTA2K; Pump used for 2 years after rebuild.

Ingersoll Rand Size 4HMTA-6 Boiler Feed Water Pump; Cameron Division; GPM: 586; Head FT: 2024; RPM: 3560; SP. GR: 0.95; Hydro PSIG: 1200; Rebuilt by Flowserve: 11/29/02; Pump Casting Number: 36HMTA2K.

Ingersoll RAND Pump S Type Size 10X11SC. Casing Material CI Impeller 316SS Impeller Diameter 11.25” 7-Vane Double Suction Split Case Pump. 1800 GPM at 40 Feet Head. Storeroom Item Very Good Condition.

Sulzer MBN 50-215 7-Stage Boiler Feed Pump. UNUSED. Nameplated for 387 GPM @ 1660 TDH Duplex Stainless Steel boiler feed water pump. Horizontal 7 Stage Manufactured by Sulzer Inc. Year 2009. Model Number MBN50-215/07. Serial Number 10067021 20WTS-P-4544A approx 720 psi. 4" suction 2" discharge both in the vertical position. Mounted on a skid direct coupled to a Siemens PE 21 Plus High Efficienct AC motor. Serial MO8TG8871071-2. Rated for 300 HP 3/60/460 volt 323 amps 3575 RPM motor. TEFC Enclosure NEMA Nom. Frame size 449 TS. Efficiency rated for 95.8%. Set up for long term storage.
